Product BiosensorBacteria Impedance Analyzer
Overview
▪ Electrochemical impedance analysis for real-time monitoring of bacteria
▪ Electrochemical impedance analysis of pathogen▪ Analyzes the impedance of bacteria and virus which are located between electrodes▪ High power-efficient system for long term analysis▪ Sealed electrode module for cultivating pathogen▪ Operates with a battery and Wireless data communication system
Product Description
|
Product Name |
Description |
Specification |
|
Bacteria Impedance
Analyzer |
Analyzer |

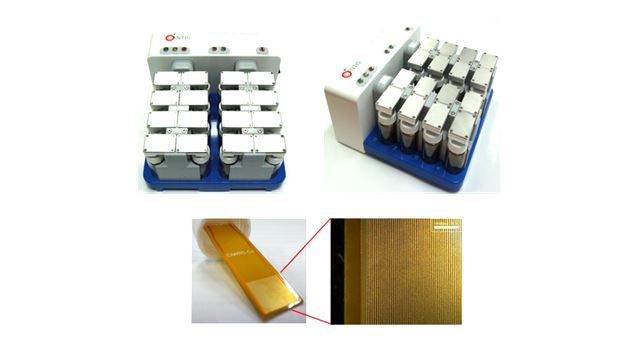

▪ Dimension 208.2 x 208.7 x 105 mm ▪ Measurement Impedance variation (capacitance, conductance) ▪ Measurement range Capacitance 1pf ~ 3.5uf, Resistance : 50~ 50,000 Ω ▪ Frequency range 0.5~50kHz ▪ Interface_16well (1 reference channel ) ▪ Operating for 11days after charging ▪ Communication: Bluetooth2~4(1Mbps~3Mbps), 10m ▪ Environment : temperature 0°C to +80°C relative humidity 100% max |
|
Electrode set |
Electrode
sensor |
▪ Plate: PCB based ▪ Interdigited: 40um_gap, 60um_width, 17.3µm_h ▪ PET Bottle volume: about 20mL, working: 10mL |
|
PC with software |
|
Applications
▪ Monitoring the density of bacteria and cultivating characteristics in media▪ Detection of tubercle bacillus▪ Diagnosis of blood-poisoning▪ It can also be used for establishing food recipes by analyzing fermentative status of food such as Kimchi or ice cream
Advantage
▪ Conventional cultivating systems need four weeks for cultivating and detecting of tubercle bacillus.▪ However, our Pathogenic Bacteria Analyzer only takes two weeks for tubercle bacillus, a day for bacteria, and even less than 24hours for diagnosis of blood-poisoning.
Application Examples
